How to display more than one model in a view in MVC 2

Home > Search > How-to
  by

Let's say you have two tables in SQL, table1 and table2, and you want to display data from both tables in a view, such as www.example.com/Home/Details/1.

table1
id 1
column1 foo



table2
id 1
column1 bar




MODEL

In your model, ensure you have a public class table1 and a public class table2.

namespace example.Models
{
    public class table1
    {
        public int id { get; set; }
        public string column1{ get; set; }
    }

    public class table2
    {
        public int id { get; set; }
        public string column1 { get; set; }
    }

    public class example_db : DbContext
    {
        public DbSet<table1> foo { get; set; }
        public DbSet<table2> bar { get; set; }
    }
}




You should have two contollers, table1Controller and table2Controller. Each controller should have a Details section.

TABLE1CONTROLLER

namespace example.com.Controllers
{
    public class Table1Controller : Controller
    {
        private example_db db = new example_db();

        public ActionResult Details(int? id)
        {
            Table1 table1 = db.Table1.Find(id);
            return View(table1);
        }
    }
}



TABLE2CONTROLLER

namespace example.com.Controllers
{
    public class Table2Controller : Controller
    {
        private example_db db = new example_db();

        public ActionResult Details(int? id)
        {
            Table2 table2 = db.Table2.Find(id);
            return View(table1);
        }
    }
}




You should have two views, /View/Table1/Details and /View/Table2/Details. Each view should start with a unique model. Also, each view should display the data from it's table.

TABLE1 VIEW

@model www.example.com.Models.Table1

@Html.DisplayFor(model => model.column1)

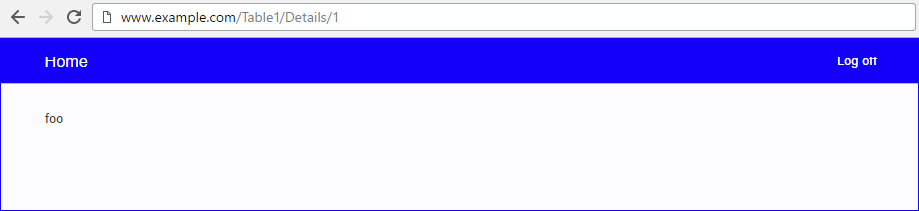

Navigating to www.example.com/Table1/Details/1 will display foo.



TABLE2 VIEW

@model www.example.com.Models.Table2

@Html.DisplayFor(model => model.column1)

Navigating to www.example.com/Table1/Details/1 will display bar.




PUTTING IT ALL TOGETHER

Create a new Razor view. Let's name it Combined.

@{
    Html.RenderPartial("table1", www.example.com.Models.table1);
}

@{
    Html.RenderPartial("table2", www.example.com.Models.table2);
}



Add the following to the CONTROLLER.

public ActionResult Combined(int? id)
{
    Table1 table1 = db.Table1.Find(id);
    return View(table1);
}

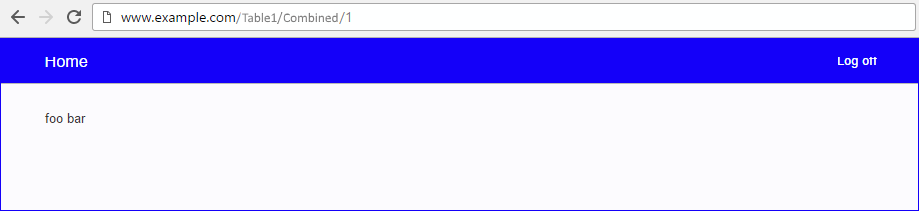

Now, when navigating to www.example.com/Table1/Combined/1, both foo and bar are displayed.
