Machine credentials are used to define the username and password of the user that will be making an SSH connection from the control node (Tower) to each managed node. This is similar to the remote_user parameter.

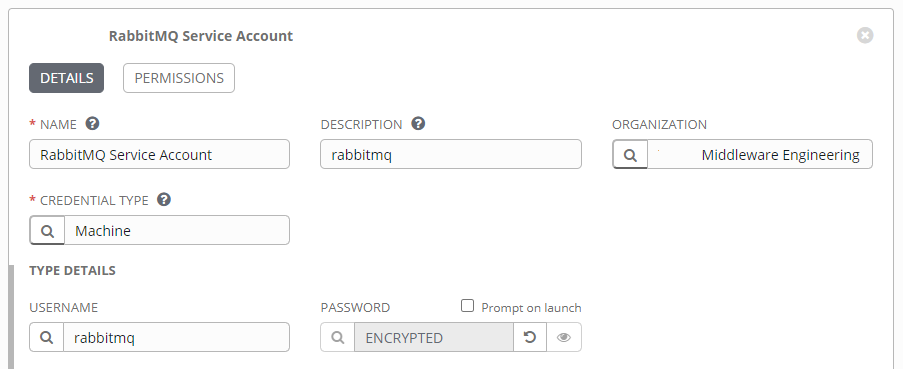

In this example, a machine credential with username rabbitmq is created.
Let's say you run a job template with verbosity set to 4 (Connection Debug).
You will want to ensure that the playbook being invoked, which is example.yml in this example, does not include the remote_user parameter, as the remote_user parameter in the playbook would take precedence over the machine credential.
Something like this should be returned, which shows that the remote user was obtained from the machine credential.
PLAYBOOK: example.yml Positional arguments: example.yml subset: server001 ask_pass: True remote_user: rabbitmq
The ansible_ssh_pass variable will contain the password being used by the Machine credential. However, this is not the way that Machine credentials are meant to be used. Instead, Vault credentials can be used to define a password that can then be used in a playbook.
- name: display ansible_ssh_pass debug: var: ansible_ssh_pass
