At a high level, setting up an Elastic Kubernetes Service (EKS) Cluster with Container Storage Interface (CSI) looks something like this.

Let's say you have the following files on your Terraform server.

├── required_providers.tf
├── elastic_file_system (directory)
│   ├── provider.tf
│   ├── csi_driver.tf

required_providers.tf will almost always have this.

terraform {
  required_providers {

    aws = {
      source  = "hashicorp/aws"
    }

    kubernetes = {
      source  = "hashicorp/kubernetes"
    }

    kubectl = {
      source = "gavinbunney/kubectl"
    }

    helm = {
      source = "hashicorp/helm"
    }
  }
}

Let's say provider.tf has the following. In this example, the "default" profile in /home/username/.aws/config and /home/username/.aws/credentials is being used. This assumes you have setup Terraform as described in Amazon Web Services (AWS) - Getting Started with Terraform.

data "aws_eks_cluster" "cluster" {
  name = "my-cluster"
}

data "aws_eks_cluster_auth" "cluster_auth" {
  name = "my-cluster"
}

provider "aws" {
  alias   = "default"
  profile = "default"
  region  = "default"
}

provider "kubernetes" {
  host = "https://123456789ABCDEFG123456789ABCDEFG.gr7.us-east-1.eks.amazonaws.com"
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority[0].data)
  token = data.aws_eks_cluster_auth.cluster_auth.token
}

provider "kubectl" {
  host = "https://123456789ABCDEFG123456789ABCDEFG.gr7.us-east-1.eks.amazonaws.com"
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority[0].data)
  token = data.aws_eks_cluster_auth.cluster_auth.token
}

provider "helm" {
  host = "https://123456789ABCDEFG123456789ABCDEFG.gr7.us-east-1.eks.amazonaws.com"
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority[0].data)
  token = data.aws_eks_cluster_auth.cluster_auth.token
}

And csi_driver.tf could have something like this to create the Container Storage Interface (CSI) Driver.

resource "helm_release" "aws_efs_csi_driver" {
  chart      = "aws-efs-csi-driver"
  name       = "aws-efs-csi-driver"
  namespace  = "kube-system"
  repository = "https://kubernetes-sigs.github.io/aws-efs-csi-driver/"
}

You may need to reissue the terraform init command.

terraform init

The terraform plan command can be used to see what Terraform will try to do.

terraform plan

The terraform apply command can be used to create or update the CDI driver.

terraform apply -auto-approve

Let's say the following is returned.

│ Error: Kubernetes cluster unreachable: invalid configuration: no configuration has been provided, try setting KUBERNETES_MASTER environment variable
│
│   with module.modules.module.efs_csi_driver.helm_release.kubernetes_efs_csi_driver[0],
│   on .terraform/modules/modules.efs_csi_driver/helm.tf line 1, in resource "helm_release" "kubernetes_efs_csi_driver":
│    1: resource "helm_release" "kubernetes_efs_csi_driver" {

You can try setting the KUBE_CONFIG variable to point to your hidden .kube config file.

export KUBE_CONFIG_PATH=/path/to/.kube/config

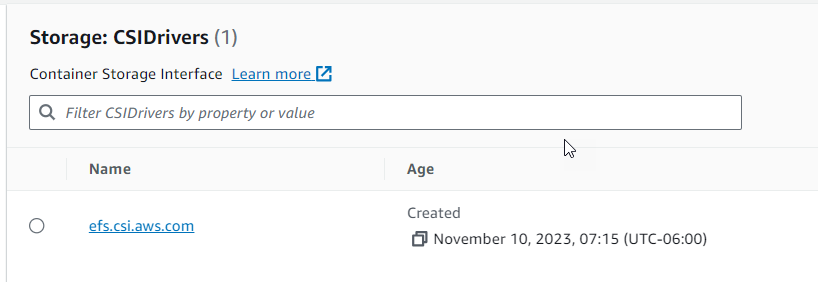

In your Elastic Kubernetes Services (EKS) console, at Resources > Storage > CSIDrivers, the efs.csi.aws.com driver should be listed.
