At a high level, setting up an Elastic Kubernetes Service (EKS) Cluster with Container Storage Interface (CSI) looks something like this.

​

Let's say you have the following files on your Terraform server.

├── required_providers.tf
├── elastic_kubernetes_service (directory)
│   ├── csi_driver.tf
│   ├── persistent_volumes.tf
│   ├── persistent_volume_claims.tf
│   ├── provider.tf
│   ├── storage_classes.tf

required_providers.tf will almost always have this.

terraform {
  required_providers {

    aws = {
      source  = "hashicorp/aws"
    }

    kubernetes = {
      source  = "hashicorp/kubernetes"
    }

    kubectl = {
      source = "gavinbunney/kubectl"
    }

    helm = {
      source = "hashicorp/helm"
    }
  }
}

Let's say provider.tf has the following. In this example, the "default" profile in /home/username/.aws/config and /home/username/.aws/credentials is being used. This assumes you have setup Terraform as described in Amazon Web Services (AWS) - Getting Started with Terraform.

data "aws_eks_cluster" "cluster" {
  name = "my-cluster"
}

data "aws_eks_cluster_auth" "cluster_auth" {
  name = "my-cluster"
}

provider "aws" {
  alias   = "default"
  profile = "default"
  region  = "default"
}

provider "kubernetes" {
  host = "https://123456789ABCDEFG123456789ABCDEFG.gr7.us-east-1.eks.amazonaws.com"
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority[0].data)
  token = data.aws_eks_cluster_auth.cluster_auth.token
}

provider "kubectl" {
  host = "https://123456789ABCDEFG123456789ABCDEFG.gr7.us-east-1.eks.amazonaws.com"
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority[0].data)
  token = data.aws_eks_cluster_auth.cluster_auth.token
}

provider "helm" {
  host = "https://123456789ABCDEFG123456789ABCDEFG.gr7.us-east-1.eks.amazonaws.com"
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority[0].data)
  token = data.aws_eks_cluster_auth.cluster_auth.token
}

And csi_driver.tf could have something like this to create the Container Storage Interface (CSI) Driver.

resource "helm_release" "aws_efs_csi_driver" {
  chart      = "aws-efs-csi-driver"
  name       = "aws-efs-csi-driver"
  namespace  = "kube-system"
  repository = "https://kubernetes-sigs.github.io/aws-efs-csi-driver/"
}

And storage_classes.tf could have something like this to create a Storage Class that uses the CSI Driver.

resource "kubernetes_storage_class" "csi" {

  metadata {
    name = "csi"
  }

  storage_provisioner = "efs.csi.aws.com"
}

And persistent_volumes.tf could have something like this to create a Persistent Volume that uses the CSI Driver and CSI Storage Class.

resource "kubernetes_persistent_volume" "csi_pv" {
  metadata {
    name = "csi-pv"
  }

  spec {
    capacity = {
      storage = "10M"
    }
    access_modes = ["ReadWriteMany"]
    persistent_volume_source {
      csi {
        driver        = "efs.csi.aws.com"
        volume_handle = helm_release.aws_efs_csi_driver.id
      }
    }
    storage_class_name = kubernetes_storage_class.csi.metadata.0.name
  }
}

And persistent_volume_claims.tf could have something like this to create a Persistent Volume Claim that uses the CSI Persistent Volume, thus using the CSI Driver and CSI Storage Class.

resource "kubernetes_persistent_volume_claim" "csi_pvc" {
  metadata {
    name = "csi-pvc"
  }
  spec {
    access_modes = ["ReadWriteMany"]
    resources {
      requests = {
        storage = "5M"
      }
    }
    storage_class_name = kubernetes_storage_class.csi.metadata.0.name
    volume_name = kubernetes_persistent_volume.csi_pv.metadata.0.name
  }
}

You may need to reissue the terraform init command.

terraform init

The terraform plan command can be used to see what Terraform will try to do.

terraform plan

The terraform apply command can be used to create or update the persistent volume.

terraform apply -auto-approve

kubectl get persistentvolumeclaims can then be used to verify that the persistent volume claim exist. Most importantly, the STORAGECLASS should be csi.

~]# kubectl get persistentvolumeclaims
NAME      STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE
csi-pvc   Bound    csi-pv   10M        RWX            csi            25s

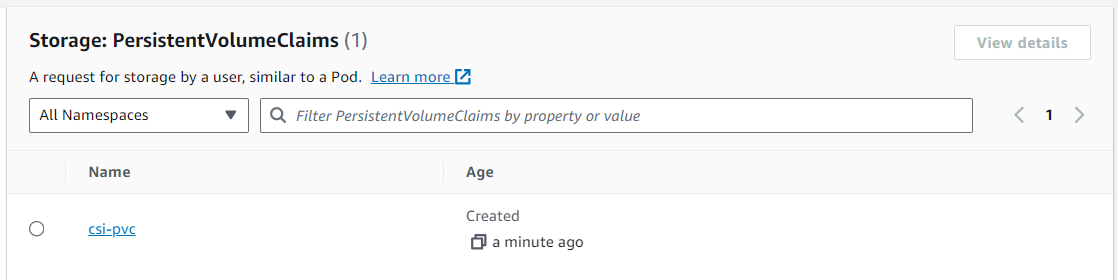

Or using the Elastic Kubernetes Services (EKS) console at Resources > Storage > Persistent Volumes Claims.
