Amazon Web Services (AWS) - List CloudFormation Stack Resources using the AWS CLI


This assumes you are familiar with CloudFormation. If not, check out my article FreeKB - Amazon Web Services (AWS) - Getting Started with CloudFormation.

The aws cloudformation list-stacks command can be used to list your CloudFormation stacks.

~]$ aws cloudformation list-stacks

{
    "StackSummaries": [
        {
            "StackId": "arn:aws:cloudformation:us-east-1:123456789012:stack/foo/314b9ed0-2d14-11ef-a291-0e2664c75f79",
            "StackName": "foo",
            "CreationTime": "2024-06-18T01:52:00.225000+00:00",
            "LastUpdatedTime": "2024-06-21T10:16:03.964000+00:00",
            "StackStatus": "UPDATE_COMPLETE",
            "DriftInformation": {
                "StackDriftStatus": "NOT_CHECKED"
            }
        },
        {
            "StackId": "arn:aws:cloudformation:us-east-1:123456789012:stack/bar/77e1bd20-29ef-11ef-b8c9-0e33d6c7becd",
            "StackName": "bar",
            "CreationTime": "2024-06-14T01:46:30.856000+00:00",
            "LastUpdatedTime": "2024-06-14T01:46:35.673000+00:00",
            "StackStatus": "CREATE_COMPLETE",
            "DriftInformation": {
                "StackDriftStatus": "NOT_CHECKED"
            }
        }
    ]
}

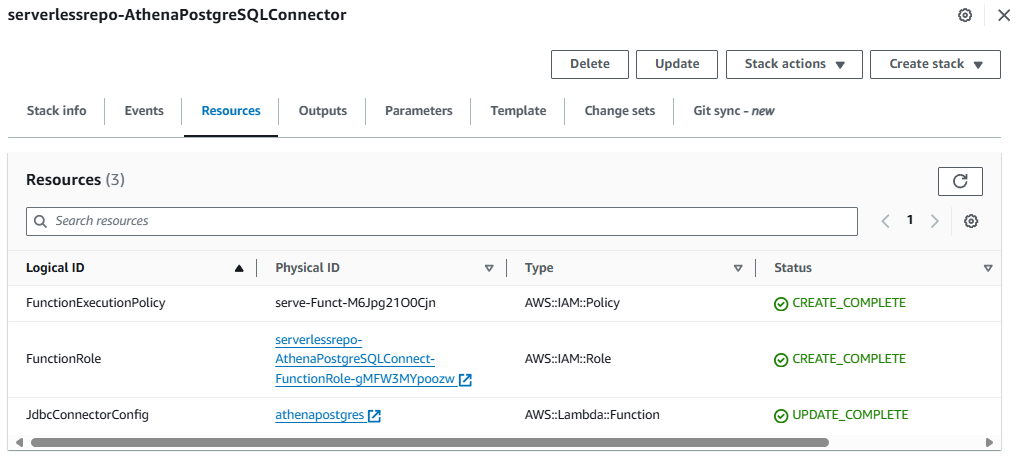

A CloudFormation stack is a collection of resources. For example, one of the first CloudFormation Stacks I created was an Athena Postgres Connector which included 3 resources, an IAM Policy, an IAM Role, and a Lambda Function.



The aws cloudformation list-stack-resources command can be used to list the resources in a CloudFormation Stack.

~]$ aws cloudformation list-stack-resources --stack-name serverlessrepo-AthenaPostgreSQLConnector
{
    "StackResourceSummaries": [
        {
            "LogicalResourceId": "FunctionExecutionPolicy",
            "PhysicalResourceId": "serve-Funct-M6Jpg21O0Cjn",
            "ResourceType": "AWS::IAM::Policy",
            "LastUpdatedTimestamp": "2024-06-18T01:52:44.164000+00:00",
            "ResourceStatus": "CREATE_COMPLETE",
            "DriftInformation": {
                "StackResourceDriftStatus": "NOT_CHECKED"
            }
        },
        {
            "LogicalResourceId": "FunctionRole",
            "PhysicalResourceId": "serverlessrepo-AthenaPostgreSQLConnect-FunctionRole-gMFW3MYpoozw",
            "ResourceType": "AWS::IAM::Role",
            "LastUpdatedTimestamp": "2024-06-18T01:52:27.085000+00:00",
            "ResourceStatus": "CREATE_COMPLETE",
            "DriftInformation": {
                "StackResourceDriftStatus": "NOT_CHECKED"
            }
        },
        {
            "LogicalResourceId": "JdbcConnectorConfig",
            "PhysicalResourceId": "athenapostgres",
            "ResourceType": "AWS::Lambda::Function",
            "LastUpdatedTimestamp": "2024-06-21T10:16:14.544000+00:00",
            "ResourceStatus": "UPDATE_COMPLETE",
            "DriftInformation": {
                "StackResourceDriftStatus": "NOT_CHECKED"
            }
        }
    ]
}
