How to start and stop Tomcat

Home > Search > How-to
  by

Start Tomcat

To start Tomcat, run the startup script.

~]# $CATALINA_HOME/bin/startup.sh
. . .
Tomcat started.



The catalina.out file will display Tomcat's listening ports. These ports are obtained by reading the server.xml file. In this example, Tomcat is using port 8080 for HTTP, port 8443 for HTTPS, and port 8009 for AJP.

~]# cat $CATALINA_HOME/logs/catalina.out
17-Sep-2017 17:45:17.371 INFO [main] org.apache.coyote.AbstractProtocol.init Initializing ProtocolHandler ["http-nio-8080"]
17-Sep-2017 17:45:17.641 INFO [main] org.apache.coyote.AbstractProtocol.init Initializing ProtocolHandler ["https-jsse-nio-8443"]
17-Sep-2017 17:45:17.761 INFO [main] org.apache.coyote.AbstractProtocol.init Initializing ProtocolHandler ["ajp-nio-8009"]

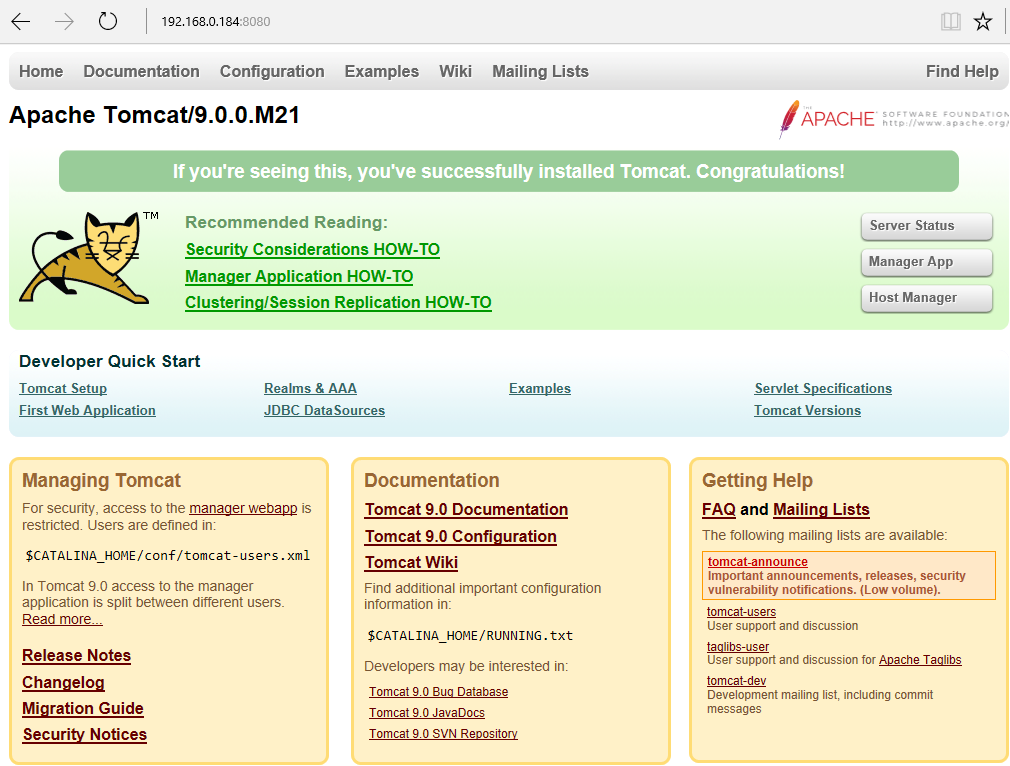

Navigate to http://www.example.com:<port number>. The Tomcat home page should be displayed.



The ps command can be used to verify that Tomcat is running. If the ps command displays two or more processes, where one of the process is Java, this means Tomcat is running.

~]# ps -ef | grep tomcat
root  13044 12965  0  17:37  pts/0  00:00:00  grep --color=auto  tomcat
root  18695     1  0  Sep08  ?      00:03:00  /usr/bin/java . . .



These events will be recorded in catalina.log.

Jun 03, 2018 3:40:25 AM org.apache.coyote.AbstractProtocol init
INFO: Initializing ProtocolHandler ["http-nio-8080"]

Jun 03, 2018 3:40:25 AM org.apache.catalina.core.StandardService startInternal
INFO: Starting service Catalina



Sometimes, after Tomcat has started, it can take some time for the web apps to be deployed. The catalina.out file can be checked to see if there is a delay in the deployment of the web apps.

~]# cat $CATALINA_HOME/logs/catalina.out
17-Sep-2017 17:45:17.914 INFO [main] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory [/opt/tomcat/webapps/ROOT]




Stop Tomcat

To stop Tomcat, run the shutdown script.

~]# $CATALINA_HOME/bin/shutdown.sh



These events will be recorded in the catalina.log.

Jun 03, 2018 3:40:25 AM org.apache.coyote.AbstractProtocol pause
INFO: Pausing ProtocolHandler ["http-nio-8080"]

Jun 03, 2018 3:40:25 AM org.apache.catalina.core.StandardService stopInternal
INFO: Stopping service Catalina

Jun 03, 2018 3:40:25 AM org.apache.coyote.AbstractProtocol stop
INFO: Stopping ProtocolHandler ["http-nio-8080"]

Jun 03, 2018 3:40:25 AM org.apache.coyote.AbstractProtocol destroy
INFO: Destroying ProtocolHandler ["http-nio-8080"]
