If you are not familiar with the oc command, refer to OpenShift - Getting Started with the oc command.

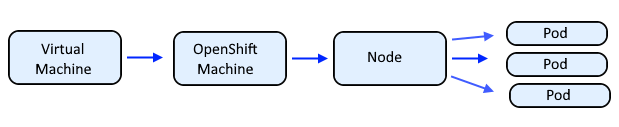

I like to think of a machine as OpenShift representation of a Virtual Machine, such as an Amazon Web Services (AWS) EC2 Instance, or a VMWare Virtual Machine, and then a Node, and then the pods running on the node. Machine Configs can be used to configure the Virtual Machine Operating System, such as configuring a Linux systemd service such as sshd or chronyd or Network Manager.
The oc get nodes command will return the list of nodes, something like this.
~]# oc get nodes
NAME STATUS ROLES AGE VERSION
my-edge-lm6wz Ready infra,worker 667d v1.24.12+8f6c8a6
my-edge-pmlls Ready infra,worker 667d v1.24.12+8f6c8a6
my-infra-c4v5h Ready infra,worker 667d v1.24.12+8f6c8a6
my-infra-mc8rc Ready infra,worker 667d v1.24.12+8f6c8a6
my-infra-p9cjv Ready infra,worker 667d v1.24.12+8f6c8a6
my-master-0 Ready master 670d v1.24.12+8f6c8a6
my-master-1 Ready master 670d v1.24.12+8f6c8a6
my-master-2 Ready master 670d v1.24.12+8f6c8a6
my-worker-lk5vm Ready compute,worker 209d v1.24.12+8f6c8a6
my-worker-pj4r4 Ready compute,worker 209d v1.24.12+8f6c8a6
The oc debug command can be used to start a node in debug mode.
oc debug node/my-node-5n4fj
If something like "Pod Predicate NodeAffinity failed" is returned . . .
error: debug pod could not be scheduled: Pod Predicate NodeAffinity failed. To fix this you may want to create a new namespace with empty node selector and run the debug there. For example: oc adm new-project --node-selector="" debug
. . . you can do as the error output suggests and use the oc adm new-project command to create a "debug" project with an empty node selector annotation.
oc adm new-project --node-selector="" debug
And then use the oc project command to switch over to the "debug" project.
oc project debug
The oc debug command can be used to start a node in debug mode. This will provide you with a command line prompt in a "debug" pod for the node that can be used for debugging purposes.
~]# oc debug node/my-node-5n4fj
Starting pod/my-node-5n4fj-debug ...
sh-4.4#
Typically you will first issue the chroot /host command is used to set /host as the root directory because the root file system is mounted to /host in the debug pod.
sh-4.4# chroot /host
And then you can use the systemctl reboot command to reboot the node.
sh-4.4# systemctl reboot
Or, better yet, this one liner command can be used.
oc debug node/<node name> -- chroot /host systemctl reboot
