Let's say you used the ansible-vault create command to create locker.yml. When creating locker.yml, you would have been prompted to create a vault password. The vault password can be stored in an Ansible Tower credential.

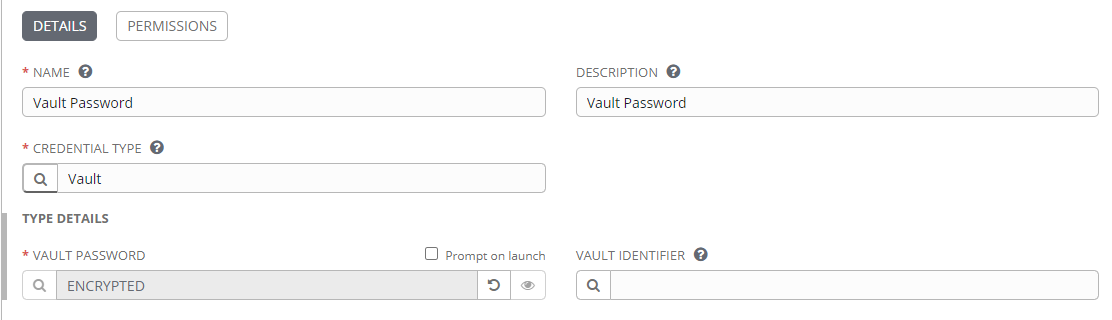

1. In Tower, select Credentials.
2. Select the green plus icon.
3. Enter the following:
   • Name = Something unique
   • Description = Something unique
   • Organization =
   • Credential Type = Vault
   • Vault Password = the vault password
4. Select Save.

Let's say locker.yml contains the following. The foo variable contains a value of bar.

foo: bar

You'll have to make locker.yml accessible by Tower. For example, let's say you have a project that is using the foo.git repository. In this scenario, locker.yml could be placed in group_vars/all/locker.yml in the Git repository.

Next you will want to create a job template that is using the foo project and also using the vault credentials. Let's say the template is running playbook foo.yml and foo.yml contains the following.

---
- hosts: all
  tasks:
    - name: print the value in the foo variable
      debug:
        var: foo
...

The following should be returned. Notice "bar" is returned.

TASK [print the value in the foo variable]
ok: [server1.example.com] => {
    "foo": "bar"
}
