At https://www.rabbitmq.com/community-plugins.html, select rabbitmq-delayed-message-exchange and download the rabbitmq-delayed-message-exchange-<version>.ez file. Place the rabbitmq-delayed-message-exchange-<version>.ez file in the /usr/lib/rabbitmq/plugins directory.

Ensure the file is owned by the rabbitmq users and rabbitmq group.

chown rabbitmq /usr/lib/rabbitmq/plugins/rabbitmq_delayed_message_exchange-*.ez
chgrp rabbitmq /usr/lib/rabbitmq/plugins/rabbitmq_delayed_message_exchange-*.ez

Use the rabbitmq-plugins enable command to enable the plugin. There is no need to restart the RabbitMQ service.

rabbitmq-plugins enable rabbitmq_delayed-message-exchange

The rabbitmq-plugins list command should now show that the rabbitmq-delayed-message-exchange plugin is enabled.

~]# rabbitmq-plugins list
Listing plugins with pattern ".*" ...
 Configured: E = explicitly enabled; e = implicitly enabled
 | Status: * = running on rabbit@DLAMQPS002
 |/
[  ] rabbitmq_amqp1_0                  3.8.16
[  ] rabbitmq_auth_backend_cache       3.8.16
[  ] rabbitmq_auth_backend_http        3.8.16
[E*] rabbitmq_auth_backend_ldap        3.8.16
[  ] rabbitmq_auth_backend_oauth2      3.8.16
[  ] rabbitmq_auth_mechanism_ssl       3.8.16
[  ] rabbitmq_consistent_hash_exchange 3.8.16
[E*] rabbitmq_delayed_message_exchange 3.8.0
[  ] rabbitmq_event_exchange           3.8.16
[  ] rabbitmq_federation               3.8.16
[  ] rabbitmq_federation_management    3.8.16
[  ] rabbitmq_jms_topic_exchange       3.8.16
[E*] rabbitmq_management               3.8.16
[e*] rabbitmq_management_agent         3.8.16
[E*] rabbitmq_message_timestamp        3.8.0
[  ] rabbitmq_mqtt                     3.8.16
[  ] rabbitmq_peer_discovery_aws       3.8.16
[  ] rabbitmq_peer_discovery_common    3.8.16
[  ] rabbitmq_peer_discovery_consul    3.8.16
[  ] rabbitmq_peer_discovery_etcd      3.8.16
[  ] rabbitmq_peer_discovery_k8s       3.8.16
[E*] rabbitmq_prometheus               3.8.16
[  ] rabbitmq_random_exchange          3.8.16
[  ] rabbitmq_recent_history_exchange  3.8.16
[  ] rabbitmq_sharding                 3.8.16
[E*] rabbitmq_shovel                   3.8.16
[E*] rabbitmq_shovel_management        3.8.16
[  ] rabbitmq_stomp                    3.8.16
[  ] rabbitmq_top                      3.8.16
[  ] rabbitmq_tracing                  3.8.16
[  ] rabbitmq_trust_store              3.8.16
[e*] rabbitmq_web_dispatch             3.8.16
[  ] rabbitmq_web_mqtt                 3.8.16
[  ] rabbitmq_web_mqtt_examples        3.8.16
[  ] rabbitmq_web_stomp                3.8.16
[  ] rabbitmq_web_stomp_examples       3.8.16

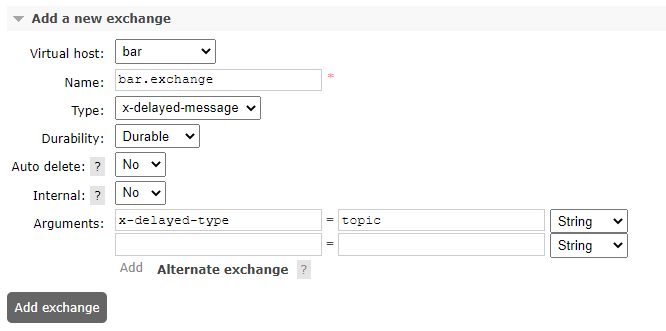

Now when creating an exchange, you can set the type to x-delayed-message with the x-delayed-type argument which would contain a value such as direct or topic of fanout.

Let's say you have a Java app that is the producer putting messages onto an exchange. The producer can define the x-delay header, such as 10000 milliseconds in this example.

Map<String, Object> headers = new HashMap<String, Object>();

headers.put("x-delay", 10000);

channel.basicPublish(exchange, routingkey, mandatory, MessageProperties.PERSISTENT_TEXT_PLAIN, message.getBytes());
