A Systems Manager Document Runbook can be used to do something. For example, to publish a message to one of your Simple Notification Service (SNS) Topics. In the AWS Systems Manager console, select Shared Resources > Documents > Create document > Automation. Let's give our document a name.
Then select Code and replace the default YAML with the folloiwng YAML to publish a message to one of your SNS Topics and save the runbook.
description: Publish SNS Notification
schemaVersion: '0.3'
assumeRole: '{{ Role }}'
parameters:
TopicArn:
type: String
description: (Required) The ARN of your SNS topic
Role:
type: String
description: (Required) The ARN of your IAM role
mainSteps:
- name: PublishSNSNotification
action: aws:executeAwsApi
isEnd: true
inputs:
Service: sns
Api: Publish
TopicArn: '{{TopicArn}}'
Message: Hello World
Notice the YAML includes assumeRole: '{{ AutomationAssumeRole }}'. Let's create a policy that allows messages to be published to the SNS Topic. For example, let's say you name the policy my-snspublish-policy.
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"sns:Publish"
],
"Resource": "arn:aws:sns:region:account-id:sns-topic-name"
}
]
}
And then let's create a role will trust ssm.amazonaws.com for assume role. For example, let's say trust.json contains the following.
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "",
"Effect": "Allow",
"Principal": {
"Service": "ssm.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
The aws iam create-role command can be used to create the role.
aws iam create-role --role-name my-role --assume-role-policy-document file://trust.json
And then the aws iam attach-role-policy command can be used to attach the Permission Policy you created to the role. Now when the ssm.amazonaws.com service assumes the role, the service will have permission to publish messages to your SNS Topic.
aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/my-snspublish-policy --role-name my-role

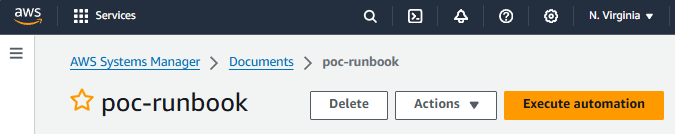

Let's make sure the runbook can publish a message to your SNS Topic. Let's select Execute automation.

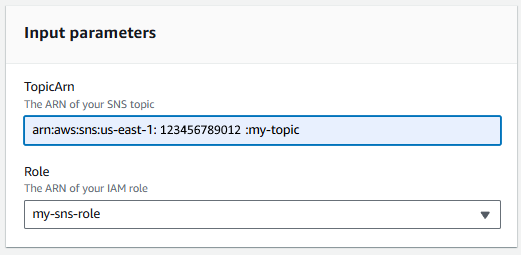

And since the runbook YAML has two variables (TopicArn and Role) let's enter the Amazon Resource Number (ARN) of your SNS Topic and the Role you just created and select Execute.

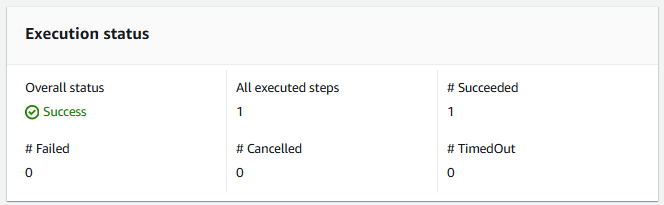

And what you want to see is a successful execution, and the message should be published to the subscribers. In laymen terms, the subscribers should get an email in their inbox.
